8051 Microcontroller Lab
Description
The 8051 Micro controller Lab is specially designed keeping in mind the curriculum as well as the basic skills needed for working with micro controllers. This lab is based on the 8051 platform thus enabling the students to have a complete experience to work with 8051 micro controller target. This lab also includes different development tools in the form of compilers, IDE, etc. The plugable interfacing kits offered can be interfaced with the target CPU board thus mastering the art of programming and interfacing. The documentation provided includes lesson plans, manuals and workbooks with complete procedures of operations and experimentation.
Features
- The lab features 8-bit micro controller platform based on 8051 micro controller to learn and explore the basics of a micro controller and its operations.
- Lab offers micro controller target board with on board programming facility.

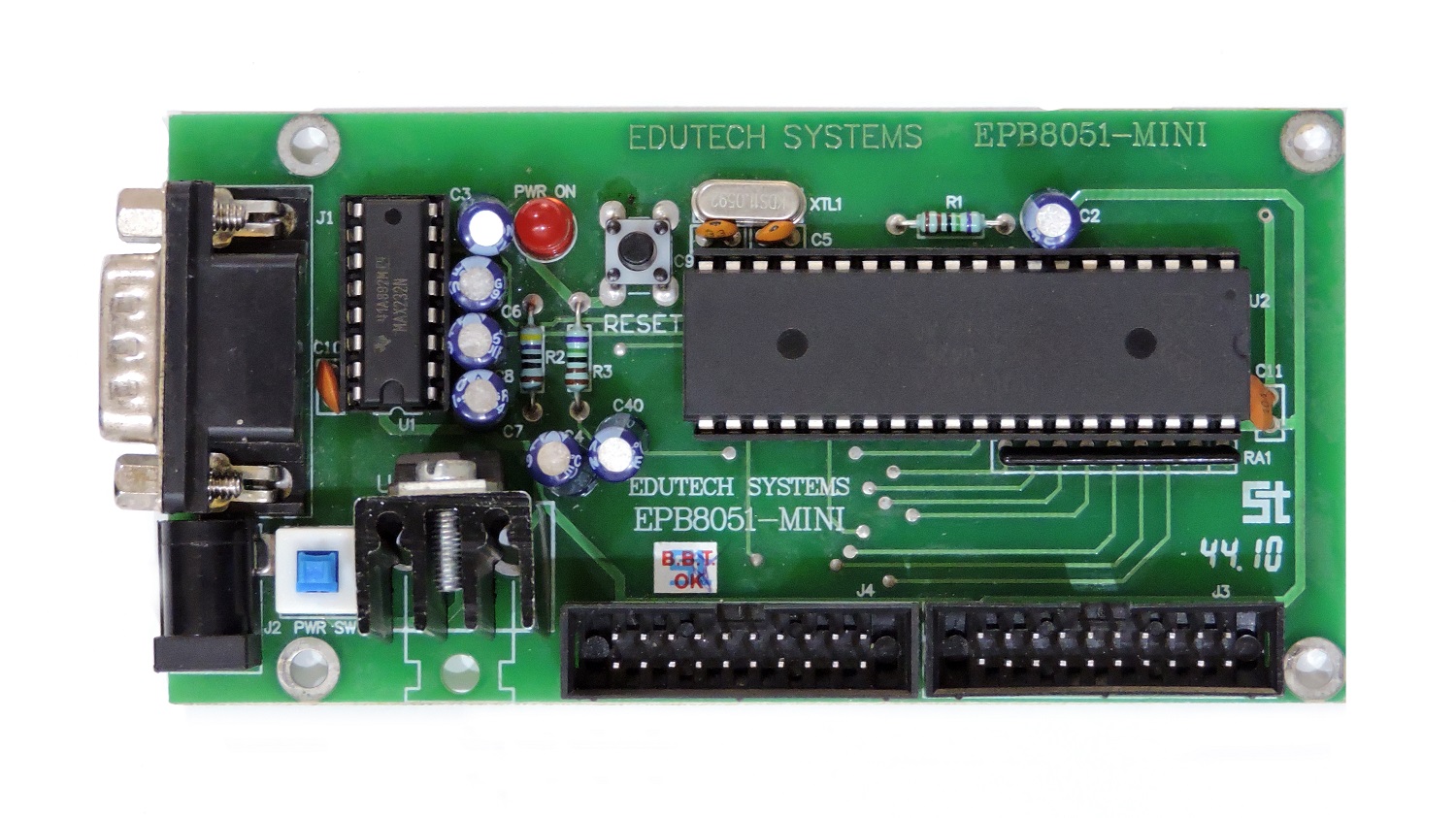

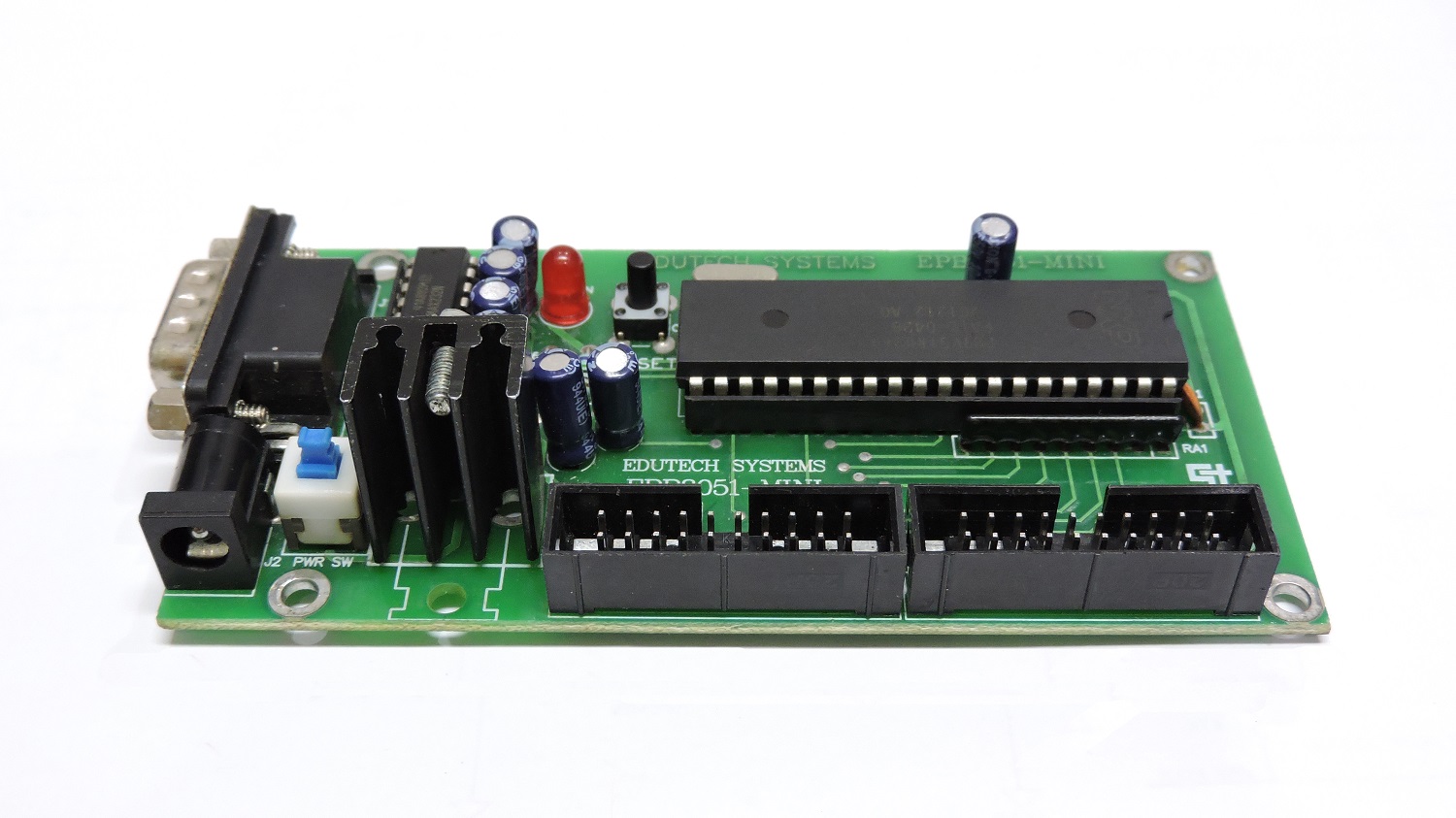

- The Educational Practice Board for 8051 featuring 89V51RD2 or equivalent with on-board programming feature and all the port lines available on two twenty pin connectors.
- Set of All-In-One general purpose board having interfaces like LCD, 8 LED, 4 Key, 2X2 matrix keyboard, 2 seven segment LED, stepper motor interface, DC motor interface, relay interface, I2C and SPI based EEPROM interface enables the learner to interface external devices to the controller. This board can be interfaced with any of the controller boards provided in the lab.
- A full version of Integrated Development Environment (C-Cross compiler) supporting the target board is offered which can be used to write C codes and test them on the target hardware.
- The lab also includes a complete documentation in the form of workbooks with case studies and experiments. A complete source codes for various on chip and off chip peripherals for all of the above mentioned micro controllers is made available with the lab setup.
Experiments
The experiments include the cases studies on the various features of the microcontrollers including on-chip and off-chip peripherals. These cases enable the learner to learn the art of writing the interfacing drivers, initialization routines, reusable functions, etc. The case studies provided with the lab includes the following peripherals:
- GPIO
- Timer/Counter
- Interrupts
- UART
- SPI
- Interfacing Switch
- LED interfacing
- Interfacing 7-Segment LED
- Interfacing LCD
- Interfacing Matrix Keyboard
- Interfacing Stepper Motor
- Relay Interfacing

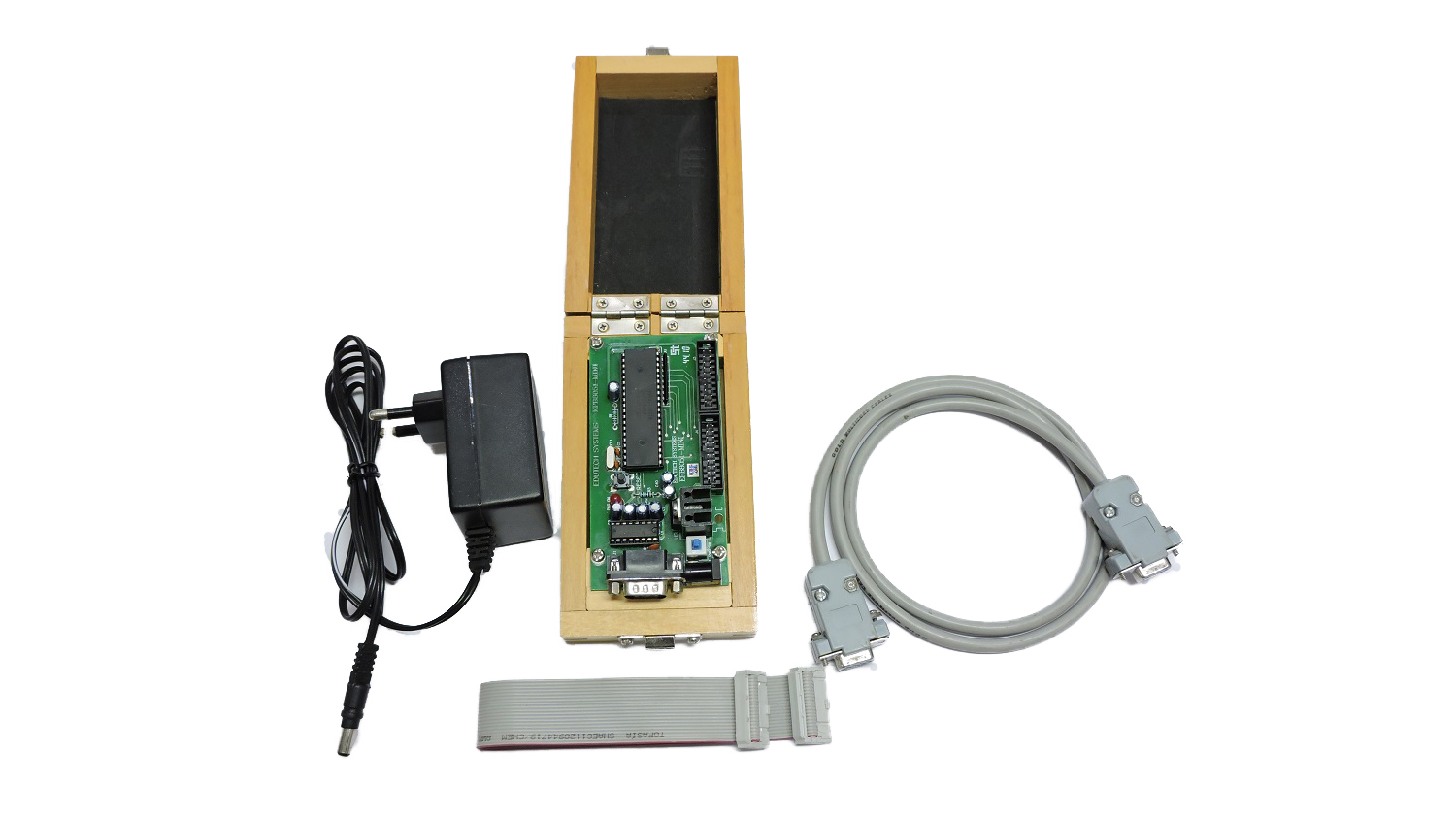

Contents :
| Resources | Quantity |
|---|---|
| Educational Practice Board for 8051 | 10 |
| All In One general Purpose Board | 10 |
| IDE Configured for 8051-PIC-AVR-ARM7 Platform | 1 |
| 9V Power Supply | 10 |
| Serial Cable DB9 F/F | 10 |
| 8051 Microcontroller Lab Workbook | 1 |
